Fittings
Seeflex 040E

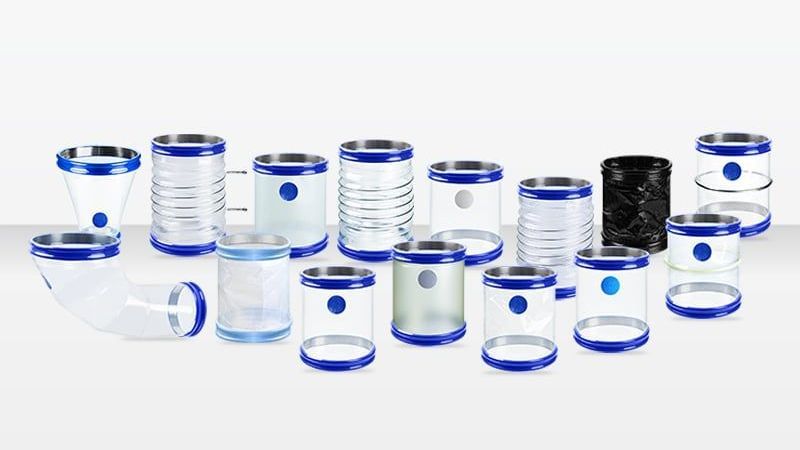

Seeflex 040E is one of the available materials for BFM® fitting connectors. Not only is it transparent, but it is also exceptionally durable making it the primary choice for most industrial applications. BFM® fittings provide faster, cleaner, and safer connections in process lines where vibration, expansion, contraction, or portability issues prevent permanent solid-pipe connections.
Seeflex 040AS
Seeflex 040AS is a clear ether based thermoplastic polyurethane allow with Anti-static infusion. Having no memory, Seeflex 040AS will not fracture as a result of constant flexing.
Seeflex 020E
Seeflex 020E is a clear ether based thermoplastic polyurethane alloy. Having no memory, Seeflex 020E will not fracture as a result of constant flexing.
Flexi-Connector
The Flexi-Connector is made from an ether based polyurethane with a 316 stainless steel wire coil. Ideal for bag feeders, filling heads or bulk bag fillers.
Camlon
A double layered connector (Seeflex 040E inner layer, Camlon outer layer) only used for over pressure situations.
LM3
LM3 is made from 100% woven polypropylene, and is ideal for low temperature environments, down to -70°C (-94°F).
LM4
LM4 is made from 100% woven polyester and is a breathable connector used in higher temperature environments.
Teflex
Teflex is made from pure woven PTFE and can be used in high temperature applications and with either caustic or acid products.
FM1 Breather
A 100% polyester needle felt breather bag designed for breathing applications such as venting hoppers and other contained vessels.
Black Out Cover
The Black Out Cover is used in light-sensitive applications to cut out light. Made from a polypropylene fiber that meets FDA requirements for textiles used in the processing of foods.
Kevlar Cover
The flame retardant Kevlar Cover fits over existing connectors and is typically used in over pressure and potentially explosive applications to reduce the risk of fire. Compliant with: FDA requirements for textiles used in the processing of foods, Drugs Title 21, Section 177.1632.
Blanking Cap
BFM blanking caps can be used to prevent contamination during clean down or change-over. They protect products and prevent dust emission into the factory.
Flexi-Earthed
The Flexi-Earthed connector is made from an ether based polyurethane with a 316 stainless steel wire coil and terminal lugs at each end.
Flexi-Light
The Flexi-Light Connector is made from an ether based polyurethane with a lighter 316 stainless steel wire coil than our standard Flexi, making it ideal for applications with lateral and vertical movement. The Seeflex walls are also slightly thinner and the coil is much more flexible making it perfect for weigh-scale type applications, as it provides less resistance than our standard Flexi.
Seeflex 060ES
Pressure-resistant Seeflex 060ES is a clear, ether-based thermoplastic polyurethane alloy with an internal polyester scrim. The internally bonded scrim restricts the Seeflex sleeve from stretching and provides superior pressure resistance.
Teflex NP
A pure PTFE connector capable of running at high temperatures, and can be used across the full pH scale.

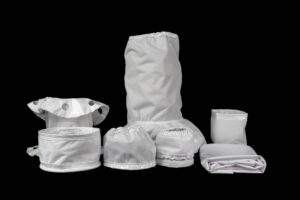

Blanking Socks
Blanking socks are ideal for sifter oversize collection bins are another ideal application for the BFM® concept. Transparent for monitoring fill level and reject consistency, they can also be lined with plastic bags for easy disposal of reject product.
BFM Spigots
BFM® spigots are manufactured out of 304 and 316 stainless steel in a range of standard sizes from 100 mm (4 in) up to 1,650 mm (65 in) in 50 mm (2 in) increments that can accommodate virtually any process environment. Additionally, for special applications, C22 Hastelloy is available from 100 mm (4 in) to 500 mm (20 in) in 50 mm (2 in) increments.
