Recycling Products

Eriez employs a range of separation technologies to efficiently recover valuable ferrous and nonferrous throughout the scrap metals process. Ballistic, gravity, magnetic and sensory equipment are specifically designed to optimize the recovery of different metals and mixed metal fractions to maximize their value.



Ferrous Recovery Products

Eriez’ metal recovery and sorting equipment use permanent magnets and electromagnets to sort, separate and retrieve metals in applications including municipal solid waste, comingled recyclables, shredded automobiles, electronic scrap, glass cullet, plasted (PET) and foundry sand.

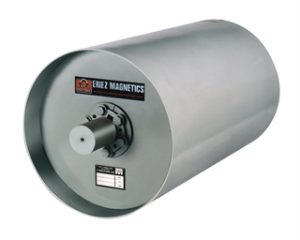

                  Eriez Magnetic Pulleys

Replace your standard pulley with our powerful permanent magnetic pulley to transform your belt conveyor into a powerful self cleaning magnetic separator. The axial interpole magnetic circuit provides a uniform magnetic field to remove tramp iron from material on almost any belt conveyor.

More Info

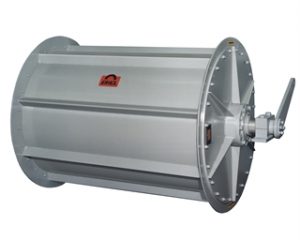

  Eriez Magnetic Scrap Drum         Seperators

Eriez magnetic drums have been used for many years in scrap metal yards to separate iron and steel from other materials. Using our sophisticated design software and unique magnetic circuits, Eriez provides scrap drums with deeper magnetic fields to reclaim ferrous materials in shredded car bodies, scrap metals, municipal solid waste, wood waste, slag, incinerator bottom ash, foundry sand and minerals processing applications.

More Info

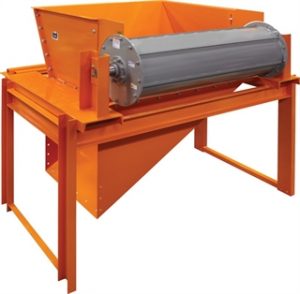

         Eriez PokerSort Metal Separator

Eriez’ PokerSort® extracts long, troublesome pokers like automotive leaf springs, tie rods, steering and axle components and other generally uncooperative long shapes directly from the shred before the drum magnet. As pokers exit the shredder, alignment guides on the incline conveyor position poker-type objects parallel in the flow. As pokers reach the end of the conveyor, they extend beyond the conveyor and are magnetically pulled over the PokerSort, into a chute or conveyor belt and collect in a bin or bunker.

More Info

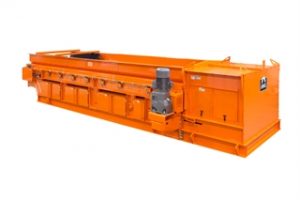

  Eriez Shred1 Ballistic Seperators

Shred1™ uses ballistics to efficiently separate iron-rich ferrous from much of the mixed metals post-drum magnet flow. This separator delivers two distinct fractions: a premium low-copper ferrous product (in the range of 0.16-0.20% cu) and a traditional #2 shred.

More Info

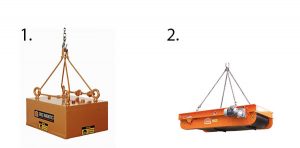

    Eriez Suspended Electromagnet

1.Manual Cleaning Model

2. Self Cleaning Model

The Suspended Electromagnet, providing tramp metal collection from conveyed materials, is a widely used magnetic separator. The electromagnet is typically mounted or suspended over a conveyor belt to remove large pieces of tramp metal that represent a hazard to downstream crushers, mills, pulverizers and grinders.

More Info

Eriez Suspended Permanent Magnets

1.SP Series 6000 Permanent Magnets (Manual and Self Cleaning Models)

2.Model CP 20/80L Permanent Magnets

The Suspended Electromagnet, providing tramp metal collection from conveyed materials, is a widely used magnetic separator. The electromagnet is typically mounted or suspended over a conveyor belt to remove large pieces of tramp metal that represent a hazard to downstream crushers, mills, pulverizers and grinders.

More Info





NonFerrous Recovery Products

Eriez’ gravity, magnetic and sensory equipment is specifically designed to optimize the recovery of different metals and mixed metal fractions to maximize their value.

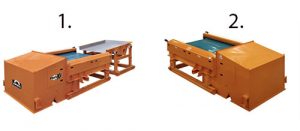

         Eriez Eddy Current Separators

1.RevX-E® Eddy Current Separators

2. Ultra High-Frequency Eddy Current Separator

Removes nonferrous metallics from: plastics, glass cullet, electronic scrap, automobile shredder residue (ASR), boiler bottom ash, spent foundry core sand, municipal solid waste (MSW), co-mingled recyclables, urban wood waste and mixed metals.

More Info



Eriez Rougher Cleaner Scavenger RCS

The Rougher Cleaner Scavenger (RCS) system developed by Eriez deploys eddy current separator (ECS) units with specific settings in a deliberate order to maximize zorba recovery in downstream auto shredder systems.

More Info

    Eriez Stainless Steel Separators

Eriez’ Stainless Steel Separator extracts stainless steel and weakly magnetic metals from Zurik fractions 1″ or smaller.

More Info

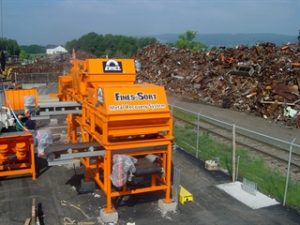

              Eriez FinesSort Separator

Eriez’ FinesSort® Metals Recovery System uses powerful magnetic components to recover valuable ferrous and nonferrous metals from the fines waste stream in scrap yards.

More Info

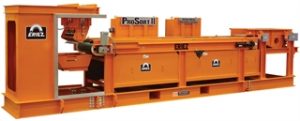

Eriez ProSort II Airless Metal Recovery

Eriez’ ProSort systems improve metal recovery from waste streams while operating at a fraction of the cost of air-powered metal separators.

More Info



Eriez Smart TEchnology Products

Eriez SMART™ system continuously monitors critical processes and sorting equipment to ensure operations are performing efficiently.

Eriez Metal Loss Monitor

The Metal Loss Monitor continuously scans your residue stream for valuable metal that has escaped your process and is headed for landfill disposal. Positioned either upstream or downstream of the hand picking station, the MLM alerts operators when a spike in metal count has been detected and aids in diagnosing where a process breakdown may have occurred.

More Info

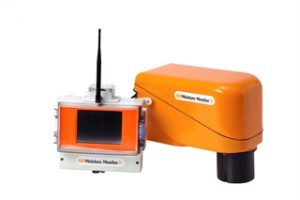

Eriez Moisture Monitor

Eriez’ Moisture Monitor continuously measures the moisture content of material exiting the shredder and reports the data locally or remotelyvia the Eriez SMART web portal. In the recycling industry, the Moisture Monitor helps mill operators balance the amount of water used to prevent fires and reduce dust, while preventing excessive water usage which interferes with separation, and increases the net weight of fluff being transported to landfill.

More Info

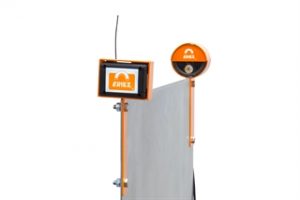

Eriez Splitter Monitor

Installed on separation equipment the Splitter Monitor optically scans for debris build up on the lead edge of a splitter blade. A “clogged” splitter can greatly affect metal recovery if undetected for periods of time. As material builds up, the Splitter Monitor sends warning alerts via email or text message to prompt the appropriate personnel to clean the blade. Using this smart technology reduces the frequency of random manual checks of splitters and improves metal recovery.

More Info
